Replacement for Airax Rayflex 6858828403502 350N

$53.02




Replacement gas spring for the Airax Rayflex 6858828403502 350 Newton. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: Hahn.

Please note:
The diameter of the tube of this replacement gas spring is 19mm instead of 20mm.
This gas spring is also known as 588284-CRR 350N, 50006858828403502, 6858828403502.00.
WG20
elbow ball removal

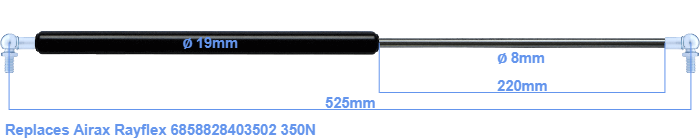

The bore of the house of this replacement gas spring is 19 mm. The diameter of the rod totals 8 mm. The chrome part is called the rod. It has a length of 220 mm. The total length of this replacement is exactly 525 mm. Note: this is the total length between the rotation points of the two mounting parts. Without the mounting parts this gas spring is 485 mm long (thread to thread). This gas spring (6858828403502) has a force of 350 Newton. This gas spring can replace a Airax Rayflex gas spring, but is not an orignal Airax Rayflex one. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand Stabilus Industry Line. The gas spring can be used without problems as a replacement, because the dimensions and force nearly equal.
