Replacement for Airax Rayflex 6858861401201 120N

$56.03




Replacement gas spring for the Airax Rayflex 6858861401201 120 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
  • The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 19mm instead of 20mm.


    • View this gas spring in our configurator.
    This gas spring is also known as 588614 120N, 50006858861401201, 6858861401201.00.
    Airax Rayflex 6858861401201
    AR19

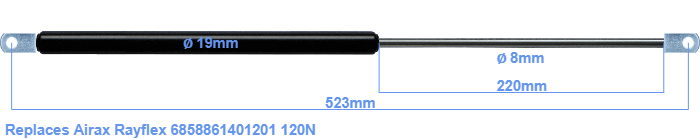

    The bore of the house of this replacement gas spring is 19 mm. The rod has a diameter of 8 mm. The stroke of the gas spring is 220 millimeter. The total length of this replacement is 523 millimeter. Keep in mind that this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 485 mm long (thread to thread). This replacement gas spring (6858861401201) has a force of 120 Newton (N). This is not an official Airax Rayflex gas spring, but a so called replacement. This gas spring was produced by Stabilus subsidiary HAHN. The gas spring can be used without problems as a replacement, because the dimensions and force close to equal.
