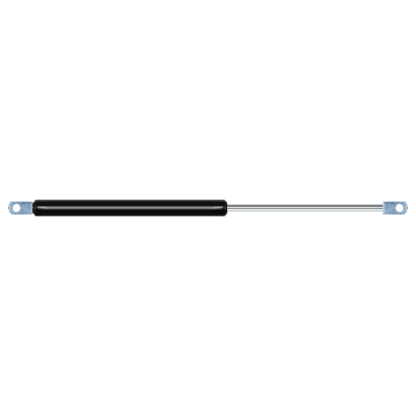

Replacement for Airax Rayflex 6858853604001 400N

$54.26




Replacement gas spring for the Airax Rayflex 6858853604001 400 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
  • The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 19mm instead of 20mm.


    • View this gas spring in our configurator.
    This gas spring is also known as 588536 400N, 50006858853604001, 6858853604001.00.
    Airax Rayflex 6858853604001
    AR19

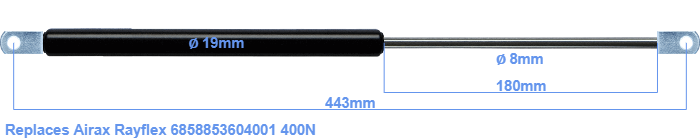

    The diameter of the cylinder of this gas spring is 19 millimeters. The cross section of the rod is 8 mm. The stroke (the retracting part) has a length of 180 mm. In total, the length is 443 millimeter. Note: this is the total length between the rotation points of the two mounting parts. Without the mounting parts this gas spring is 405 mm long (thread to thread). The force of this replacement gas spring is 400 Newton. This is not an official Airax Rayflex gas spring, but a so called replacement. This a gas spring with the brand HAHN. Nevertheless, the force and dimensions close to equal.
