Replacement for Airax Rayflex 6858860206501 650N

$40.97




Replacement gas spring for the Airax Rayflex 6858860206501 650 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
  • The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 19mm instead of 20mm.


    • View this gas spring in our configurator.
    This gas spring is also known as 588602 650N, 50006858860206501, 685886026501.00, 6858860206501.00.
    Airax Rayflex 6858860206501
    AR19

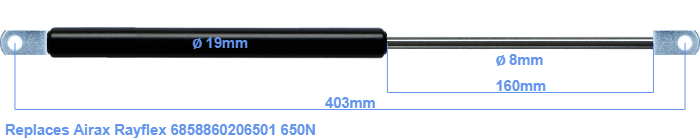

    The diameter of the cylinder of this gas spring is 19 millimeters. The diameter of the rod totals 8 mm. The stroke of the gas spring is 160 millimeter. In total, the length is 403 millimeter. Note: this is the total length between the rotation points of the two mounting parts. Without the mounting parts this gas spring is 365 mm long (thread to thread). The force of this replacement gas spring is 650 Newton. This gas spring can replace a Airax Rayflex gas spring, but is not an orignal Airax Rayflex one. This replacement gas spring is a HAHN gas spring. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are nearly equal.
