Replacement for Airax Rayflex 6858848906502 650N
Replacement gas spring for the Airax Rayflex 6858848906502 650 Newton. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: Stabilus Industry Line.
The diameter of the tube of this replacement gas spring is 19mm instead of 20mm. This gas spring is also known as 588489-CRR 650N, 50006858848906502, 6858848906502.00.

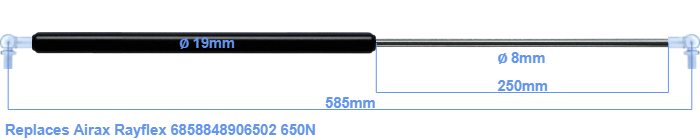

The diameter of the cylinder of this gas spring is 19 millimeters. The rod has a diameter of 8 mm. The stroke (the retracting part) has a length of 250 mm. In total, the length is 585 millimeter. This is the distance between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 545 mm. The force of this replacement is 650 Newton. This is not an original gas spring from Airax Rayflex, but a so called replacement gas spring. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand Stabilus Industry Line. The gas spring can be used without problems as a replacement, because the dimensions and force almost entirely equal.
