Replacement for Airax Rayflex 588531 50-800N

$30.08




Replacement gas spring for the Airax Rayflex 588531 50-800 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: Stabilus Industry Line.

Please note:
  • The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 19mm instead of 20mm.
  • Clear
    This gas spring is also known as 5000588531, 588531.00.
    Airax Rayflex 588531
    AR19

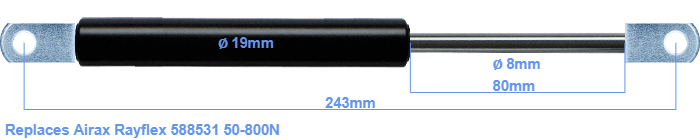

    This gas spring has a cylinder diameter of 19 mm. The diameter of the rod is 8 millimeter. The chrome part is called the rod. It has a length of 80 mm. The total length of this replacement is 243 millimeter. This is the total distance between the centers of the two mounting parts. The distance from thread to thread (without mounting parts) is 205 mm. This replacement gas spring has a force of 50-800 Newton. This is not an official Airax Rayflex gas spring, but a so called replacement. This a gas spring with the brand Stabilus Industry Line. Nevertheless, the force and dimensions close to equal.
