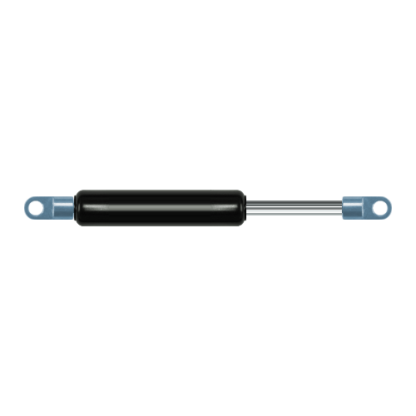

Replacement for Airax Rayflex 6856353302001 200N

$35.25




Replacement gas spring for the Airax Rayflex 6856353302001 200 Newton. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: Stabilus Industry Line.

Please note:
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way.
This gas spring is also known as 563533 200N, 50006856353302001, 6856353302001.00.
Airax Rayflex 6856353302001
AX16


The diameter of the black cylinder of this gas spring is 15 millimeter. The cross section of the rod is 6 mm. The stroke (the retracting part) has a length of 40 mm. The total length of this replacement gas spring is 144 mm. This is the distance between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 112 mm. This gas spring (6856353302001) has a force of 200 Newton. Attention: this is not an official Airax Rayflex gas spring, but a replacement gas spring. This is a Stabilus Industry Line gas spring. Nevertheless, the dimensions and force are close to equal.
