Replacement for Airax Rayflex 6856354604001 400N
Replacement gas spring for the Airax Rayflex 6856354604001 400 Newton. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: Stabilus Industry Line.
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way. This gas spring is also known as 563546 400N, 50006856354604001, 6856354604001.00.

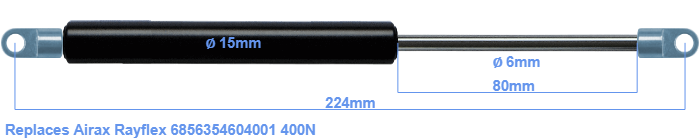

The diameter of the cylinder of this gas spring is 15 mm. The diameter of the rod totals 6 mm. The stroke (the retracting part) has a length of 80 mm. The total length of this replacement is exactly 224 mm. Note: this is the total length between the rotation points of the two mounting parts. The length from thread to thread (exlcuding the mounting parts) is 192 millimeter. This gas spring (6856354604001) has a force of 400 Newton. This is not an original gas spring produced by Airax Rayflex, but it can replace a Airax Rayflex gas spring. This a gas spring with the brand Stabilus Industry Line. The force (400 N) and dimensions are close to identical to the original.
