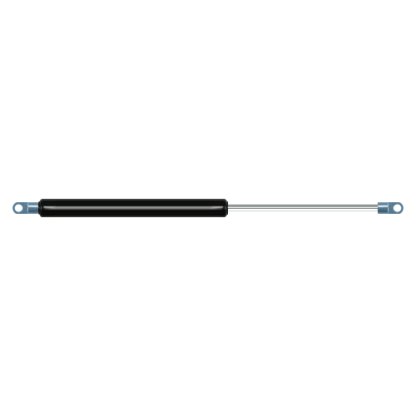

Replacement for Airax Rayflex 6856354203001 300N

$28.94




Replacement gas spring for the Airax Rayflex 6856354203001 300 Newton. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: Stabilus Industry Line.

Please note:
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way.
This gas spring is also known as 563542 300N, 50006856354203001, 6856354203001.00.
Airax Rayflex 6856354203001
AX16


The diameter of the black cylinder of this gas spring is 15 millimeter. The cross section of the rod is 6 mm. The stroke of the gas spring is 120 millimeter. The total length of this replacement gas spring is 304 mm. Note: this is the total length between the rotation points of the two mounting parts. The length from thread to thread (exlcuding the mounting parts) is 272 millimeter. The force of this replacement is 300 Newton. Attention: this is not an official Airax Rayflex gas spring, but a replacement gas spring. This gas spring was produced by Stabilus subsidiary Hahn with the brand Stabilus Industry Line. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are almost entirely equal.
