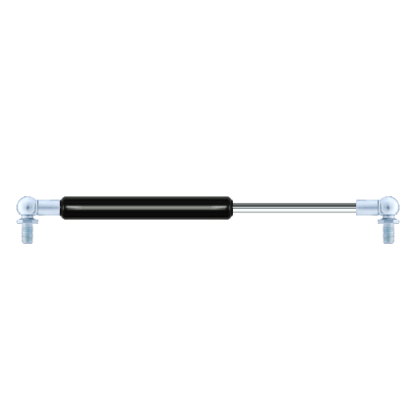

Replacement for Airax Rayflex 6856345800502 50N

$31.35




Replacement gas spring for the Airax Rayflex 6856345800502 50 Newton. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: Stabilus Industry Line.
This gas spring is also known as 563458-CRR 50N, 50006856345800502, 6856345800502.00.
Airax Rayflex 6856345800502
WX22
elbow ball removal

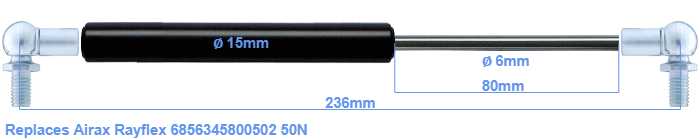

The bore of the house of this replacement gas spring is 15 mm. The cross section of the rod is 6 mm. The stroke of the gas spring is 80 millimeter. The total length of this replacement gas spring is 236 mm. This is the total distance between the centers of the two mounting parts. The distance from thread to thread (without mounting parts) is 192 mm. The force of this replacement gas spring is 50 Newton. Attention: this is not an official Airax Rayflex gas spring, but a replacement gas spring. This is a Stabilus Industry Line gas spring. The gas spring can be used without problems as a replacement, because the dimensions and force equal.
