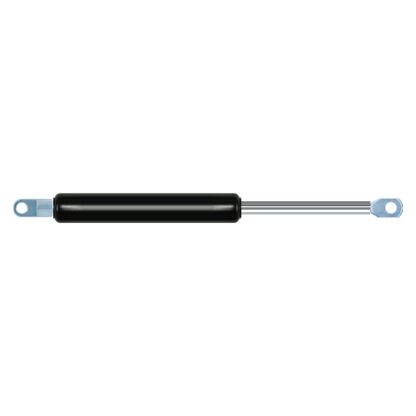

Replacement for Airax Rayflex 6851854507001 700N

$36.29




Replacement gas spring for the Airax Rayflex 6851854507001 700 Newton. Mounting part tube: The eye has a thickness of 5mm and a hole diameter of 8.1mm. Mounting part rod : The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
  • Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 23mm instead of 20mm.


  • View this gas spring in our configurator.
    This gas spring is also known as 518545 700N, 50006851854507001, 6851854507001.00.
    Airax Rayflex 6851854507001
    AS24AR16_8


    This gas spring has a cylinder diameter of 23 mm. The cross section of the rod is 10 mm. The rod (the chrome part) is 100 mm long. The total length of this gas strut is 285 mm. Note: this is the total length between the rotation points of the two mounting parts. The length from thread to thread (wihout mounting parts) is 245 mm. The force of this replacement gas spring is 700 Newton. This is not an official Airax Rayflex gas spring, but a so called replacement. This replacement gas spring is a HAHN gas spring. Nevertheless, the force and dimensions nearly equal.
