Replacement for Airax Rayflex 6851854505001 500N

$31.12

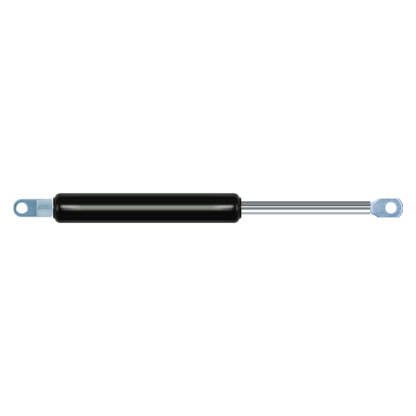

Replacement gas spring for the Airax Rayflex 6851854505001 500 Newton. Mounting part tube: The eye has a thickness of 5mm and a hole diameter of 8.1mm. Mounting part rod : The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: Stabilus Industry Line.

Please note:
  • Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 23mm instead of 20mm.
  • This gas spring is also known as 518545 500N, 50006851854505001, 6851854505001.00.
    Airax Rayflex 6851854505001
    AS24AR16_8


    This gas spring has a cylinder diameter of 23 mm. The diameter of the rod is 10 millimeter. The rod (the chrome part) is 100 mm long. The total length of this replacement gas spring is 285 mm. Attention: this is the length between the centers of the mounting parts. The length from thread to thread (exlcuding the mounting parts) is 245 millimeter. This replacement gas spring has a force of 500 Newton. This is not an original gas spring from Airax Rayflex, but a so called replacement gas spring. This is a Stabilus Industry Line gas spring. The gas spring can be used without problems as a replacement, because the dimensions and force nearly equal.
