Replacement for Airax Rayflex 6851255105001 500N

$38.56




Replacement gas spring for the Airax Rayflex 6851255105001 500 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
  • The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.


    • View this gas spring in our configurator.
    This gas spring is also known as 512551 500N, 50006851255105001, 6851255105001.00.
    Airax Rayflex 6851255105001
    AR19

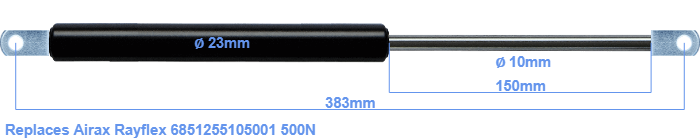

    The bore of the house of this replacement gas spring is 23 mm. The diameter of the rod is 10 millimeter. The stroke (the retracting part) has a length of 150 mm. In total, the length is 383 millimeter. This is the total distance between the centers of the two mounting parts. The distance from thread to thread (without mounting parts) is 345 mm. This replacement gas spring has a force of 500 Newton. This is not an official Airax Rayflex gas spring, but a so called replacement. This gas spring was produced by Stabilus subsidiary HAHN. Nevertheless, the dimensions and force are nearly equal.
