Replacement for Airax Rayflex 6851255005001 500N

$30.94




Replacement gas spring for the Airax Rayflex 6851255005001 500 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: Stabilus Industry Line.

Please note:
  • The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.
  • This gas spring is also known as 512550 500N, 50006851255005001, 6851255005001.00.
    Airax Rayflex 6851255005001
    AR19

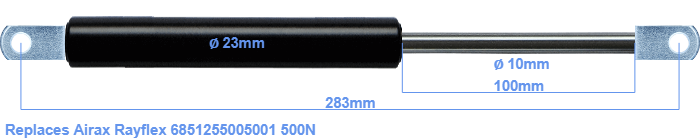

    The diameter of the black cylinder of this gas spring is 23 millimeter. The diameter of the rod totals 10 mm. The stroke (the retracting part) has a length of 100 mm. The total length of this replacement gas spring is 283 mm. Note: this is the total length between the rotation points of the two mounting parts. The length from thread to thread (exlcuding the mounting parts) is 245 millimeter. This gas spring (6851255005001) has a force of 500 Newton. This gas spring can replace a Airax Rayflex gas spring, but is not an orignal Airax Rayflex one. This is a Stabilus Industry Line gas spring. The gas spring can be used without problems as a replacement, because the dimensions and force nearly equal.
