Replacement for Airax Rayflex 6851252509001 900N

$48.80




Replacement gas spring for the Airax Rayflex 6851252509001 900 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
  • The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.


    • View this gas spring in our configurator.
    This gas spring is also known as 512525 900N, 50006851252509001, 6851252509001.00.
    Airax Rayflex 6851252509001
    AR19

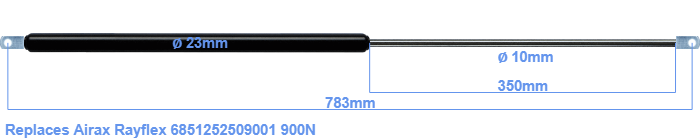

    This gas spring has a cylinder diameter of 23 mm. The cross section of the rod is 10 mm. The chrome part is called the rod. It has a length of 350 mm. The total length of this replacement gas spring is 783 mm. Attention: this is the length between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 745 mm. This replacement gas spring has a force of 900 Newton. This gas spring can replace a Airax Rayflex gas spring, but is not an orignal Airax Rayflex one. This a gas spring with the brand HAHN. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are close to equal.
    Category:
    Replacement for Airax Rayflex 6851252509001 900N
