Replacement for Airax Rayflex 6851255110501 1050N

$38.56



Replacement gas spring for the Airax Rayflex 6851255110501 1050 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

The thickness of the eye of this replacement is 10mm instead of 5mm.

The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.

View this gas spring in our configurator.

Replacement for Airax Rayflex 6851255110501 1050N quantity

Add to basket

This gas spring is also known as 512551 1050N, 50006851255110501, 6851255110501.00.

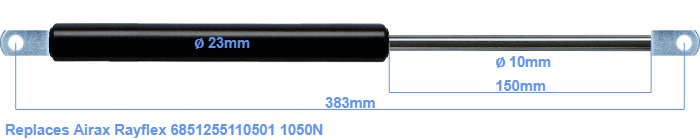

The diameter of the cylinder of this gas spring is 23 millimeters. The diameter of the rod totals 10 mm. The stroke (the retracting part) has a length of 150 mm. The total length of this replacement gas spring is 383 mm. This is the distance between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 345 mm. This replacement gas spring (6851255110501) has a force of 1050 Newton (N). This gas spring can replace a Airax Rayflex gas spring, but is not an orignal Airax Rayflex one. This is a HAHN gas spring. Nevertheless, the force and dimensions almost equal.
