Replacement for Airax Rayflex 6851252307501 750N

$41.57




Replacement gas spring for the Airax Rayflex 6851252307501 750 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
  • The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.


    • View this gas spring in our configurator.
    This gas spring is also known as 512523 750N, 50006851252307501, 6851252307501.00.
    Airax Rayflex 6851252307501
    AR19

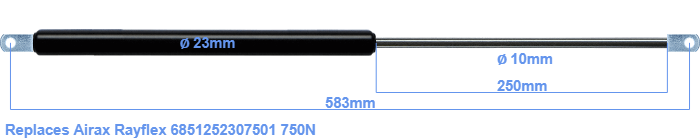

    The diameter of the cylinder of this gas spring is 23 mm. The diameter of the rod is 10 millimeter. The stroke of the gas spring is 250 millimeter. The total length of this replacement is 583 millimeter. This is the distance between the centers of the mounting parts. Without the mounting parts this gas spring is 545 mm long (thread to thread). This gas spring (6851252307501) has a force of 750 Newton. This gas spring can replace a Airax Rayflex gas spring, but is not an orignal Airax Rayflex one. This a gas spring with the brand HAHN. The force (750 N) and dimensions are almost identical to the original.
    Category:
    Replacement for Airax Rayflex 6851252307501 750N
