Replacement for Airax Rayflex 6851252102501 250N

$38.56



Replacement gas spring for the Airax Rayflex 6851252102501 250 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:

The thickness of the eye of this replacement is 10mm instead of 5mm.

The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.

View this gas spring in our configurator.

Replacement for Airax Rayflex 6851252102501 250N quantity

Add to basket

This gas spring is also known as 512521 250N, 50006851252102501, 6851252102501.00.

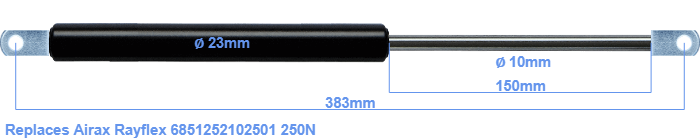

The diameter of the cylinder of this gas spring is 23 mm. The cross section of the rod is 10 mm. The stroke is 150 millimeter long. The total length of this replacement is exactly 383 mm. Attention: this is the length between the centers of the mounting parts. The length from thread to thread (exlcuding the mounting parts) is 345 millimeter. The force of this replacement is 250 Newton. This is not an original gas spring from Airax Rayflex, but a so called replacement gas spring. This gas spring was produced by Stabilus subsidiary HAHN. The gas spring can be used without problems as a replacement, because the dimensions and force nearly equal.
