Replacement for Airax Rayflex 563460-CRR 30-450N

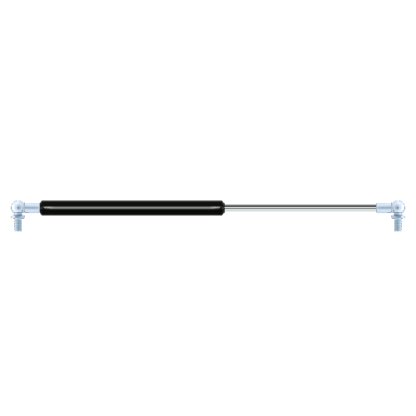

Replacement gas spring for the Airax Rayflex 563460-CRR 30-450 Newton. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: Hahn.
This gas spring is also known as 5000563460-CRR, 563460-CRR.00.
elbow ball removal

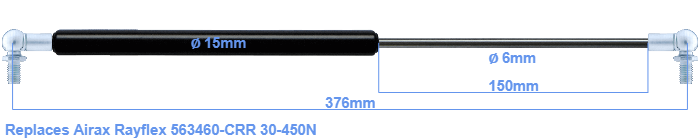

The diameter of the cylinder of this gas spring is 15 mm. The diameter of the rod totals 6 mm. The stroke is 150 millimeter long. The total length of this gas strut is 376 mm. Attention: this is the length between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 332 mm. This gas spring (563460-CRR) has a force of 30-450 Newton. This is not an original gas spring from Airax Rayflex, but a so called replacement gas spring. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand Stabilus Industry Line. Nevertheless, the dimensions and force are equal.
