Replacement for Vapsint 156.365.6 60N
Replacement gas spring for the Vapsint 156.365.6 60 Newton. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: Stabilus Industry Line. This gas spring is also known as 156.365.6. RS3 - TZ2.

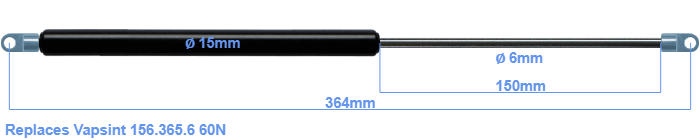

This gas spring has a cylinder diameter of 15 mm. The cross section of the rod is 6 mm. The stroke (the retracting part) has a length of 150 mm. The total length of this replacement gas spring is 364 mm. This is the total distance between the centers of the two mounting parts. Without the mounting parts this gas spring is 332 mm long (thread to thread). The force of this replacement gas spring is 60 Newton. Attention: this is not an official Vapsint gas spring, but a replacement gas spring. This gas spring was produced by Stabilus subsidiary Hahn with the brand Stabilus Industry Line. Nevertheless, the force and dimensions equal.
