Replacement for Vapsint 156.265.26 260N

$28.75




Replacement gas spring for the Vapsint 156.265.26 260 Newton. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: Stabilus Industry Line.
This gas spring is also known as 156.265.26. RS3 - TZ2.
Vapsint 156.265.26
AX16

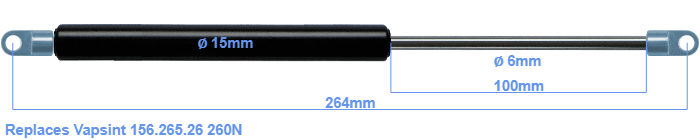

The bore of the house of this replacement gas spring is 15 mm. The diameter of the rod totals 6 mm. The stroke of the gas spring is 100 millimeter. The total length of this replacement is 264 millimeter. This is the distance between the centers of the mounting parts. The length from thread to thread (exlcuding the mounting parts) is 232 millimeter. This gas spring (156.265.26) has a force of 260 Newton. This is not an original gas spring from Vapsint, but a so called replacement gas spring. This gas spring was produced by Stabilus subsidiary Hahn with the brand Stabilus Industry Line. Nevertheless, the dimensions and force are equal.
