Replacement for Vapsint 156.225.4 40N



Replacement gas spring for the Vapsint 156.225.4 40 Newton. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: Stabilus Industry Line.
This gas spring is also known as 156.225.4. RS3 - TZ2.
Vapsint 156.225.4

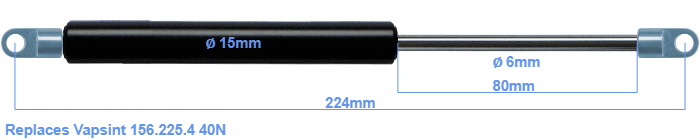

This gas spring has a cylinder diameter of 15 mm. The diameter of the rod totals 6 mm. The rod (the chrome part) is 80 mm long. In total, the length is 224 millimeter. Note: this is the total length between the rotation points of the two mounting parts. Without the mounting parts this gas spring is 192 mm long (thread to thread). This replacement gas spring (156.225.4) has a force of 40 Newton (N). This gas spring can replace a Vapsint gas spring, but is not an orignal Vapsint one. This a gas spring with the brand Stabilus Industry Line. The force (40 N) and dimensions are identical to the original.
