Replacement for Vapsint 156.225.20 200N
$33.30
Replacement gas spring for the Vapsint 156.225.20 200 Newton. The eye has a thickness of 3mm and a hole diameter of 6.1mm. Brand: HAHN, a Stabilus company.
Please note:
The eye with the thickness of 3mm of this replacement gas spring can be shorter than the original. Note that this part of the eye doesn't get in the way.
View this gas spring in our configurator. This gas spring is also known as 156.225.20. RS3 - TZ2.

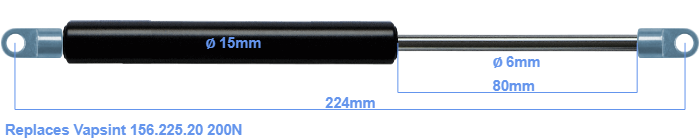

The bore of the house of this replacement gas spring is 15 mm. The rod has a diameter of 6 mm. The stroke is 80 millimeter long. The total length of this replacement is 224 millimeter. This is the distance between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 192 mm. This gas spring (156.225.20) has a force of 200 Newton. This gas spring can replace a Vapsint gas spring, but is not an orignal Vapsint one. This gas spring was produced by Stabilus subsidiary HAHN. The gas spring can be used without problems as a replacement, because the dimensions and force equal.
