Replacement for Stobo 4100290- 1000N

$39.74

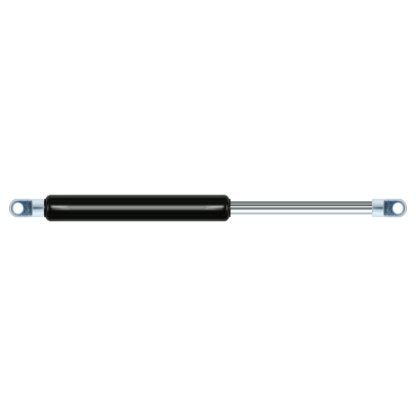

Replacement gas spring for the Stobo 4100290- 1000 Newton. The eye has a thickness of 10mm and a hole diameter of 10.1mm. Brand: Stabilus Industry Line.

Please note:
  • Mounting part tube: The thickness of the eye of this replacement is 10mm instead of 12mm.
  • Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 18mm.

  • Stobo 4100290-
    AU27

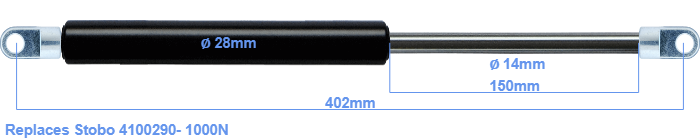

    The diameter of the cylinder of this gas spring is 28 millimeters. The rod has a diameter of 14 mm. The stroke is 150 millimeter long. The total length of this replacement gas spring is 402 mm. This is the distance between the centers of the mounting parts. Without the mounting parts this gas spring is 348 mm long (thread to thread). This replacement gas spring (4100290-) has a force of 1000 Newton (N). This is not an original gas spring produced by Stobo, but it can replace a Stobo gas spring. This is a Stabilus Industry Line gas spring. The force (1000 N) and dimensions are almost identical to the original.
