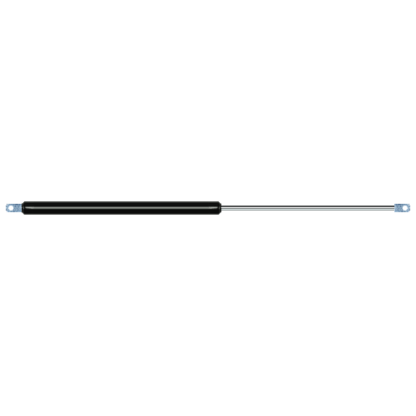

Replacement for Lesjöfors 9296 150N

$43.06




Replacement gas spring for the Lesjöfors 9296 150 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
  • The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.


    • View this gas spring in our configurator.

    Lesjöfors 9296
    AR19

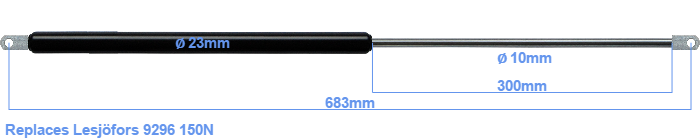

    The diameter of the cylinder of this gas spring is 23 mm. The diameter of the rod totals 10 mm. The stroke (the retracting part) has a length of 300 mm. The total length of this replacement is exactly 683 mm. This is the total distance between the centers of the two mounting parts. The length from thread to thread (wihout mounting parts) is 645 mm. This replacement gas spring has a force of 150 Newton. This is not an official Lesjöfors gas spring, but a so called replacement. This gas spring was produced by Stabilus subsidiary HAHN. The force (150 N) and dimensions are close to identical to the original.
    Category:
    Replacement for Lesjöfors 9296 150N
