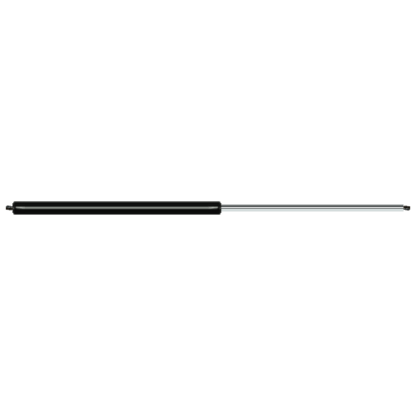

Replacement for Lesjöfors 9243 1000N



Replacement gas spring for the Lesjöfors 9243 1000 Newton. Thread: M8. Brand: Stabilus Industry Line.

Please note:
The diameter of the tube of this replacement gas spring is 23mm instead of 22mm.

Lesjöfors 9243

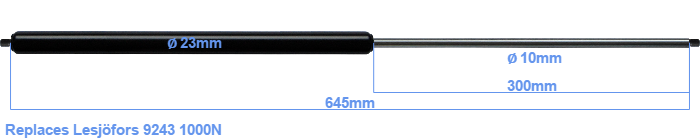

The diameter of the cylinder of this gas spring is 23 mm. The rod has a diameter of 10 mm. The stroke is 300 millimeter long. In total, the length is 645 millimeter. Note: this is the total length between the rotation points of the two mounting parts. Without the mounting parts this gas spring is 645 mm long (thread to thread). This replacement gas spring (9243) has a force of 1000 Newton (N). This is not an official Lesjöfors gas spring, but a so called replacement. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand Stabilus Industry Line. The force (1000 N) and dimensions are almost identical to the original.
