Replacement for Lesjöfors 9202 200N

$48.22




Replacement gas spring for the Lesjöfors 9202 200 Newton. Mounting part tube: The eye has a thickness of 5mm and a hole diameter of 8.1mm. Mounting part rod : The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: Hahn.

Please note:
  • Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 19mm instead of 18mm.

  • AS24AR16_8

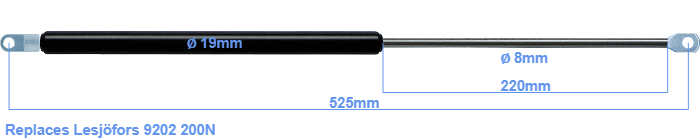

    This gas spring has a cylinder diameter of 19 mm. The rod has a diameter of 8 mm. The stroke (the retracting part) has a length of 220 mm. The total length of this replacement is exactly 525 mm. This is the distance between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 485 mm. This replacement gas spring (9202) has a force of 200 Newton (N). Attention: this is not an official Lesjöfors gas spring, but a replacement gas spring. This is a Stabilus Industry Line gas spring. Nevertheless, the force and dimensions almost entirely equal.
