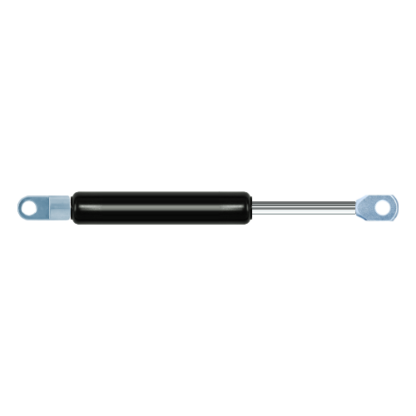

Replacement for Lesjöfors 9154 500N

$33.05




Replacement gas spring for the Lesjöfors 9154 500 Newton. Mounting part tube: The eye has a thickness of 5mm and a hole diameter of 8.1mm. Mounting part rod : The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
  • Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 19mm instead of 18mm.


    • View this gas spring in our configurator.

    Lesjöfors 9154
    AS24AR16_8

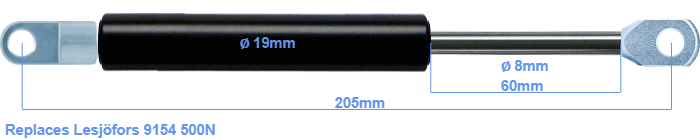

    The diameter of the black cylinder of this gas spring is 19 millimeter. The diameter of the rod totals 8 mm. The stroke is 60 millimeter long. The total length of this replacement is exactly 205 mm. Note: this is the total length between the rotation points of the two mounting parts. Without the mounting parts this gas spring is 165 mm long (thread to thread). The force of this replacement is 500 Newton. This is not an original gas spring produced by Lesjöfors, but it can replace a Lesjöfors gas spring. This is a HAHN gas spring. Nevertheless, the force and dimensions nearly equal.
    Category:
    Replacement for Lesjöfors 9154 500N
