Replacement for Kesseböhmer Lift-O-Mat 200N
$36.36
Replacement gas spring for the Kesseböhmer Lift-O-Mat 200 Newton. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.
Please note:
The diameter of the tube of this replacement gas spring is 15mm instead of 19mm.
View this gas spring in our configurator. This gas spring is also known as Hettich Lift-O-Mat 200N, 372.51.902.

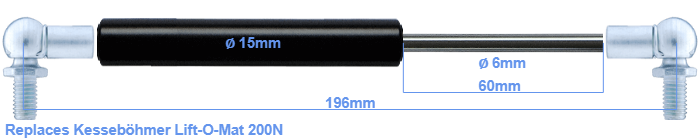

This gas spring has a cylinder diameter of 15 mm. The diameter of the rod totals 6 mm. The chrome part is called the rod. It has a length of 60 mm. The total length of this replacement is exactly 196 mm. Note: this is the total length between the rotation points of the two mounting parts. The length from thread to thread (wihout mounting parts) is 152 mm. The force of this replacement is 200 Newton. Attention: this is not an official Kesseböhmer Lift-O-Mat gas spring, but a replacement gas spring. This gas spring was produced by Stabilus subsidiary HAHN. Nevertheless, the force and dimensions nearly equal.
