Replacement for APSOvib 12.2166.3185 1850N



Replacement gas spring for the APSOvib 12.2166.3185 1850 Newton. The eye has a thickness of 10mm and a hole diameter of 10.1mm. Brand: Stabilus Industry Line.

Please note:
The thickness of the eye of this replacement is 10mm instead of 12mm.
This gas spring is also known as AP12.2166.3185.
APSOvib 12.2166.3185

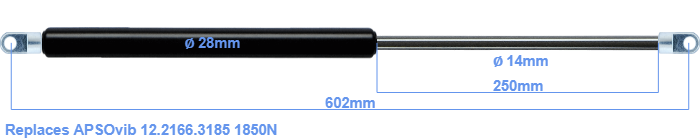

The diameter of the black cylinder of this gas spring is 28 millimeter. The cross section of the rod is 14 mm. The stroke is 250 millimeter long. The total length of this replacement is exactly 602 mm. Note: this is the total length between the rotation points of the two mounting parts. The distance from thread to thread (without mounting parts) is 548 mm. The force of this replacement is 1850 Newton. Attention: this is not an official APSOvib gas spring, but a replacement gas spring. This is a Stabilus Industry Line gas spring. Nevertheless, the force and dimensions almost entirely equal.
