Replacement for APSOvib 12.2166.2050 500N



Replacement gas spring for the APSOvib 12.2166.2050 500 Newton. The eye has a thickness of 10mm and a hole diameter of 10.1mm. Brand: Stabilus Industry Line.

Please note:
The thickness of the eye of this replacement is 10mm instead of 12mm.
This gas spring is also known as AP12.2166.2050.
APSOvib 12.2166.2050

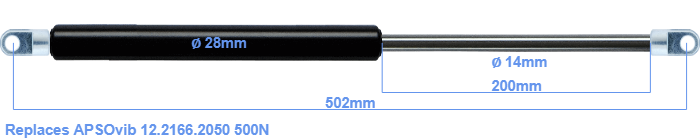

The diameter of the cylinder of this gas spring is 28 millimeters. The diameter of the rod totals 14 mm. The stroke of the gas spring is 200 millimeter. The total length of this replacement gas spring is 502 mm. Keep in mind that this is the length between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 448 mm. This replacement gas spring (12.2166.2050) has a force of 500 Newton (N). This gas spring can replace a APSOvib gas spring, but is not an orignal APSOvib one. This gas spring was produced by Stabilus subsidiary Hahn with the brand Stabilus Industry Line. Nevertheless, the dimensions and force are close to equal.
