Replacement for APSOvib 12.2166.1130 1300N
Replacement gas spring for the APSOvib 12.2166.1130 1300 Newton. The eye has a thickness of 10mm and a hole diameter of 10.1mm. Brand: Stabilus Industry Line.
The thickness of the eye of this replacement is 10mm instead of 12mm. This gas spring is also known as AP12.2166.1130.

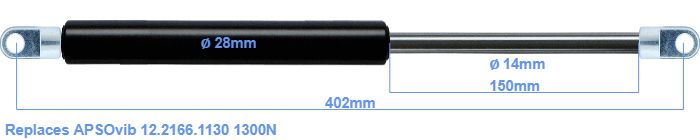

The bore of the house of this replacement gas spring is 28 mm. The cross section of the rod is 14 mm. The chrome part is called the rod. It has a length of 150 mm. In total, the length is 402 millimeter. This is the total distance between the centers of the two mounting parts. The length from thread to thread (exlcuding the mounting parts) is 348 millimeter. This gas spring (12.2166.1130) has a force of 1300 Newton. This is not an original gas spring produced by APSOvib, but it can replace a APSOvib gas spring. This is a Stabilus Industry Line gas spring. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are nearly equal.
