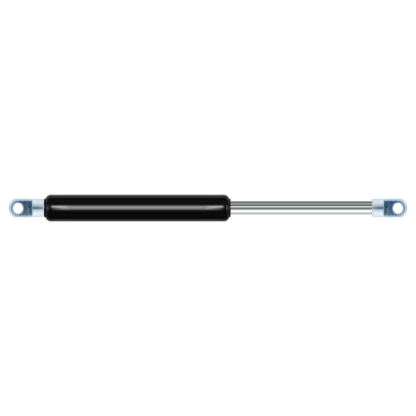

Replacement for APSOvib 12.2166.1040 400N



Replacement gas spring for the APSOvib 12.2166.1040 400 Newton. The eye has a thickness of 10mm and a hole diameter of 10.1mm. Brand: Stabilus Industry Line.

Please note:
The thickness of the eye of this replacement is 10mm instead of 12mm.
This gas spring is also known as AP12.2166.1040.
APSOvib 12.2166.1040

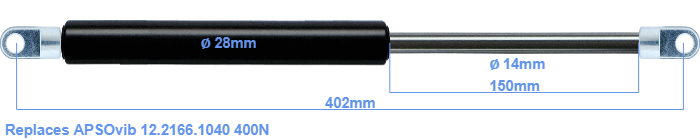

The diameter of the cylinder of this gas spring is 28 mm. The rod has a diameter of 14 mm. The stroke (the retracting part) has a length of 150 mm. In total, the length is 402 millimeter. Keep in mind that this is the length between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 348 mm. The force of this replacement gas spring is 400 Newton. This is not an official APSOvib gas spring, but a so called replacement. This replacement gas spring is a Stabilus Industry Line gas spring. Nevertheless, the dimensions and force are almost entirely equal.
