Replacement for APSOvib 12.2162.8060 600N
Replacement gas spring for the APSOvib 12.2162.8060 600 Newton. Mounting part tube: The eye has a thickness of 5mm and a hole diameter of 8.1mm. Mounting part rod : The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: Stabilus Industry Line.
Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 5mm. This gas spring is also known as AP12.2162.8060.

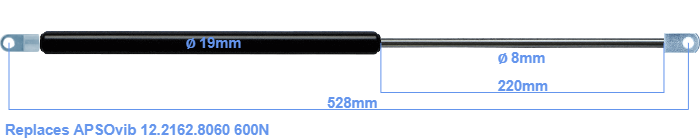

The diameter of the cylinder of this gas spring is 19 mm. The diameter of the rod totals 8 mm. The rod (the chrome part) is 220 mm long. The total length of this replacement is 528 millimeter. Note: this is the total length between the rotation points of the two mounting parts. Without the mounting parts this gas spring is 485 mm long (thread to thread). The force of this replacement gas spring is 600 Newton. This is not an original gas spring from APSOvib, but a so called replacement gas spring. This gas spring was produced by Stabilus subsidiary Hahn with the brand Stabilus Industry Line. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are almost entirely equal.
