Replacement for APSOvib 12.2162.7070 700N

$36.40

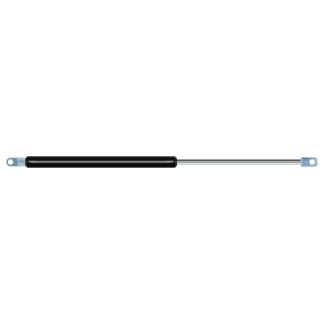

Replacement gas spring for the APSOvib 12.2162.7070 700 Newton. Mounting part tube: The eye has a thickness of 5mm and a hole diameter of 8.1mm. Mounting part rod : The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: Stabilus Industry Line.

Please note:
Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 5mm.
This gas spring is also known as AP12.2162.7070.
APSOvib 12.2162.7070
AS24AR19

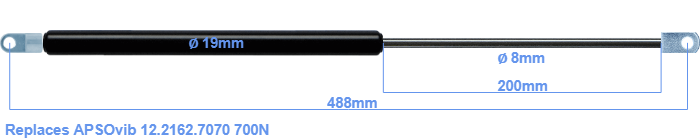

The bore of the house of this replacement gas spring is 19 mm. The diameter of the rod is 8 millimeter. The stroke of the gas spring is 200 millimeter. The total length of this replacement is 488 millimeter. Note: this is the total length between the rotation points of the two mounting parts. The length from thread to thread (wihout mounting parts) is 445 mm. This gas spring (12.2162.7070) has a force of 700 Newton. This is not an official APSOvib gas spring, but a so called replacement. This replacement gas spring is a Stabilus Industry Line gas spring. Nevertheless, the dimensions and force are almost equal.
