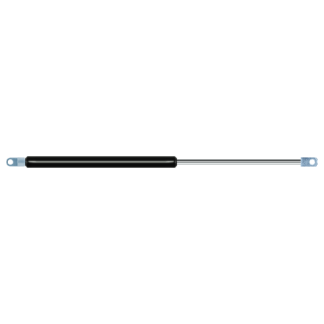

Replacement for APSOvib 12.2162.7050 500N
Replacement gas spring for the APSOvib 12.2162.7050 500 Newton. Mounting part tube: The eye has a thickness of 5mm and a hole diameter of 8.1mm. Mounting part rod : The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: Hahn.
Mounting part rod : The thickness of the eye of this replacement is 10mm instead of 5mm. This gas spring is also known as AP12.2162.7050.

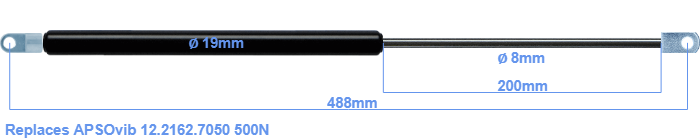

The diameter of the cylinder of this gas spring is 19 millimeters. The cross section of the rod is 8 mm. The stroke is 200 millimeter long. The total length of this replacement gas spring is 488 mm. Attention: this is the length between the centers of the mounting parts. Without the mounting parts this gas spring is 445 mm long (thread to thread). The force of this replacement is 500 Newton. This is not an original gas spring from APSOvib, but a so called replacement gas spring. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand Stabilus Industry Line. Nevertheless, the force and dimensions close to equal.
