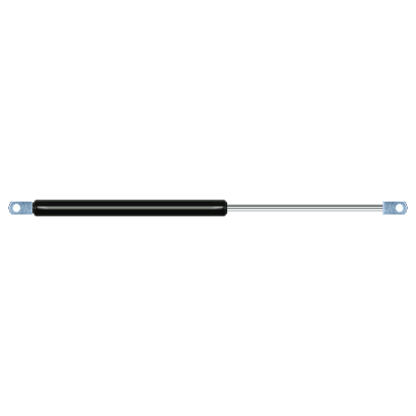

Replacement for Airax Rayflex 6858864101501 150N

$46.53




Replacement gas spring for the Airax Rayflex 6858864101501 150 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: Stabilus Industry Line.

Please note:
  • The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 19mm instead of 20mm.
  • This gas spring is also known as 588641 150N, 50006858864101501, 6858864101501.00.
    Airax Rayflex 6858864101501
    AR19

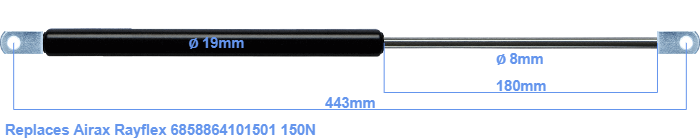

    The diameter of the black cylinder of this gas spring is 19 millimeter. The diameter of the rod totals 8 mm. The stroke (the retracting part) has a length of 180 mm. The total length of this gas strut is 443 mm. Note: this is the total length between the rotation points of the two mounting parts. Without the mounting parts this gas spring is 405 mm long (thread to thread). This gas spring (6858864101501) has a force of 150 Newton. Attention: this is not an official Airax Rayflex gas spring, but a replacement gas spring. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand Stabilus Industry Line. The force (150 N) and dimensions are almost identical to the original.
