Replacement for Airax Rayflex 6858863901001 100N

$35.92




Replacement gas spring for the Airax Rayflex 6858863901001 100 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
  • The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 19mm instead of 20mm.


    • View this gas spring in our configurator.
    This gas spring is also known as 588639 100N, 50006858863901001, 6858863901001.00.
    Airax Rayflex 6858863901001
    AR19

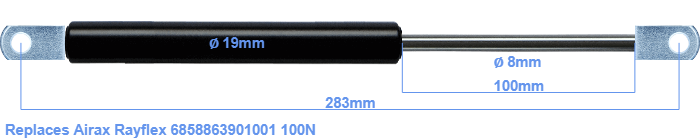

    The diameter of the cylinder of this gas spring is 19 mm. The rod has a diameter of 8 mm. The rod (the chrome part) is 100 mm long. The total length of this replacement gas spring is 283 mm. This is the total distance between the centers of the two mounting parts. Without the mounting parts this gas spring is 245 mm long (thread to thread). This gas spring (6858863901001) has a force of 100 Newton. This is not an original gas spring produced by Airax Rayflex, but it can replace a Airax Rayflex gas spring. This is a HAHN gas spring. The force (100 N) and dimensions are nearly identical to the original.
    Category:
    Replacement for Airax Rayflex 6858863901001 100N
