Replacement for Airax Rayflex 6858863805501 550N

$35.07




Replacement gas spring for the Airax Rayflex 6858863805501 550 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
  • The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 19mm instead of 20mm.


    • View this gas spring in our configurator.
    This gas spring is also known as 588638 550N, 50006858863805501, 6858863805501.00.
    Airax Rayflex 6858863805501
    AR19

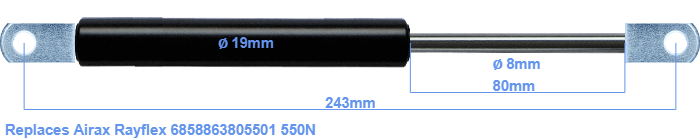

    The diameter of the black cylinder of this gas spring is 19 millimeter. The diameter of the rod is 8 millimeter. The stroke is 80 millimeter long. The total length of this replacement is 243 millimeter. This is the total distance between the centers of the two mounting parts. The length from thread to thread (wihout mounting parts) is 205 mm. The force of this replacement gas spring is 550 Newton. This is not an original gas spring from Airax Rayflex, but a so called replacement gas spring. This gas spring was produced by Stabilus subsidiary HAHN. Nevertheless, the force and dimensions close to equal.
    Category:
    Replacement for Airax Rayflex 6858863805501 550N
