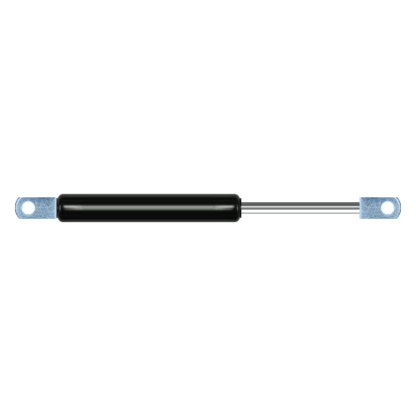

Replacement for Airax Rayflex 6858863803001 300N



Replacement gas spring for the Airax Rayflex 6858863803001 300 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
  • The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 19mm instead of 20mm.
  • This gas spring is also known as 588638 300N, 50006858863803001, 6858863803001.00.
    Airax Rayflex 6858863803001

    The bore of the house of this replacement gas spring is 19 mm. The cross section of the rod is 8 mm. The chrome part is called the rod. It has a length of 80 mm. The total length of this gas strut is 243 mm. This is the total distance between the centers of the two mounting parts. The distance from thread to thread (without mounting parts) is 205 mm. This gas spring (6858863803001) has a force of 300 Newton. Attention: this is not an official Airax Rayflex gas spring, but a replacement gas spring. This gas spring was produced by Stabilus subsidiary HAHN. Nevertheless, the force and dimensions almost entirely equal.
