Replacement for Airax Rayflex 6858861401501 150N

$56.03




Replacement gas spring for the Airax Rayflex 6858861401501 150 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
  • The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 19mm instead of 20mm.


    • View this gas spring in our configurator.
    This gas spring is also known as 588614 150N, 50006858861401501, 6858861401501.00.
    Airax Rayflex 6858861401501
    AR19

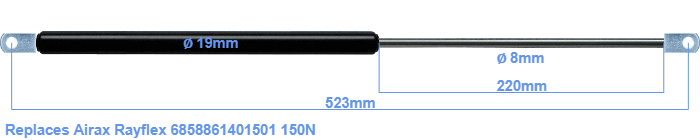

    The diameter of the black cylinder of this gas spring is 19 millimeter. The diameter of the rod is 8 millimeter. The stroke (the retracting part) has a length of 220 mm. The total length of this gas strut is 523 mm. Note: this is the total length between the rotation points of the two mounting parts. The length from thread to thread (exlcuding the mounting parts) is 485 millimeter. This gas spring (6858861401501) has a force of 150 Newton. This is not an original gas spring from Airax Rayflex, but a so called replacement gas spring. This gas spring was produced by Stabilus subsidiary HAHN. Nevertheless, the dimensions and force are close to equal.
