Replacement for Airax Rayflex 6858860203001 300N

$40.97




Replacement gas spring for the Airax Rayflex 6858860203001 300 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
  • The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 19mm instead of 20mm.


    • View this gas spring in our configurator.
    This gas spring is also known as 588602 300N, 50006858860203001, 685886023001.00, 6858860203001.00.
    Airax Rayflex 6858860203001
    AR19

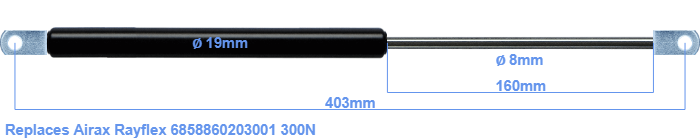

    This gas spring has a cylinder diameter of 19 mm. The diameter of the rod is 8 millimeter. The stroke is 160 millimeter long. The total length of this replacement is 403 millimeter. This is the distance between the centers of the mounting parts. The length from thread to thread (exlcuding the mounting parts) is 365 millimeter. This gas spring (6858860203001) has a force of 300 Newton. This is not an original gas spring produced by Airax Rayflex, but it can replace a Airax Rayflex gas spring. This gas spring was produced by Stabilus subsidiary HAHN. The force (300 N) and dimensions are nearly identical to the original.
    Category:
    Replacement for Airax Rayflex 6858860203001 300N
