Replacement for Airax Rayflex 6858853804501 450N

$56.03




Replacement gas spring for the Airax Rayflex 6858853804501 450 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
  • The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 19mm instead of 20mm.


    • View this gas spring in our configurator.
    This gas spring is also known as 588538 450N, 50006858853804501, 6858853804501.00.
    Airax Rayflex 6858853804501
    AR19

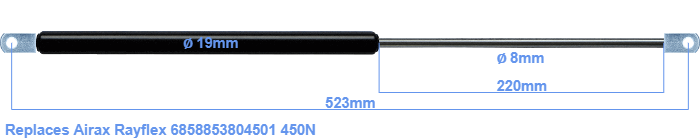

    The bore of the house of this replacement gas spring is 19 mm. The diameter of the rod totals 8 mm. The stroke (the retracting part) has a length of 220 mm. In total, the length is 523 millimeter. This is the distance between the centers of the mounting parts. The length from thread to thread (exlcuding the mounting parts) is 485 millimeter. This gas spring (6858853804501) has a force of 450 Newton. This is not an original gas spring produced by Airax Rayflex, but it can replace a Airax Rayflex gas spring. This replacement gas spring is a HAHN gas spring. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are almost equal.
