Replacement for Airax Rayflex 6858853501001 100N

$40.97




Replacement gas spring for the Airax Rayflex 6858853501001 100 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
  • The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 19mm instead of 20mm.


    • View this gas spring in our configurator.
    This gas spring is also known as 588535 100N, 50006858853501001, 6858853501001.00.
    Airax Rayflex 6858853501001
    AR19

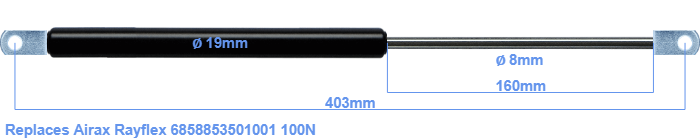

    The diameter of the cylinder of this gas spring is 19 mm. The rod has a diameter of 8 mm. The stroke is 160 millimeter long. The total length of this replacement is exactly 403 mm. This is the distance between the centers of the mounting parts. The length from thread to thread (wihout mounting parts) is 365 mm. This replacement gas spring (6858853501001) has a force of 100 Newton (N). This is not an official Airax Rayflex gas spring, but a so called replacement. This a gas spring with the brand HAHN. The force (100 N) and dimensions are nearly identical to the original.
