Replacement for Airax Rayflex 6858853003001 300N

$32.83




Replacement gas spring for the Airax Rayflex 6858853003001 300 Newton. The eye has a thickness of 10mm and a hole diameter of 8.1mm. Brand: HAHN, a Stabilus company.

Please note:
  • The thickness of the eye of this replacement is 10mm instead of 5mm.
  • The diameter of the tube of this replacement gas spring is 19mm instead of 20mm.


  • View this gas spring in our configurator.
    This gas spring is also known as 588530 300N, 50006858853003001, 6858853003001.00.
    Airax Rayflex 6858853003001
    AR19

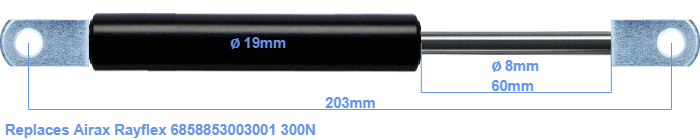

    The diameter of the black cylinder of this gas spring is 19 millimeter. The diameter of the rod is 8 millimeter. The stroke of the gas spring is 60 millimeter. In total, the length is 203 millimeter. This is the distance between the centers of the mounting parts. Without the mounting parts this gas spring is 165 mm long (thread to thread). The force of this replacement gas spring is 300 Newton. Attention: this is not an official Airax Rayflex gas spring, but a replacement gas spring. This gas spring was produced by Stabilus subsidiary HAHN. The gas spring can be used without problems as a replacement, because the dimensions and force close to equal.
