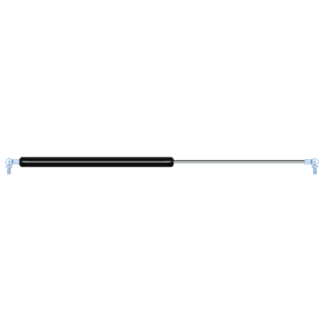

Replacement for Airax Rayflex 6858848903302 330N

$42.45




Replacement gas spring for the Airax Rayflex 6858848903302 330 Newton. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: Stabilus Industry Line.

Please note:
The diameter of the tube of this replacement gas spring is 19mm instead of 20mm.
This gas spring is also known as 588489-CRR 330N, 50006858848903302, 6858848903302.00.
Airax Rayflex 6858848903302
WG20
elbow ball removal

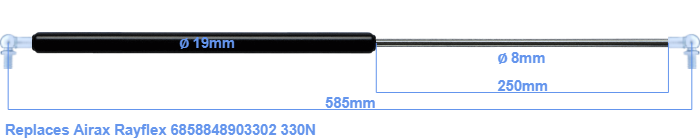

The diameter of the black cylinder of this gas spring is 19 millimeter. The diameter of the rod totals 8 mm. The stroke (the retracting part) has a length of 250 mm. The total length of this replacement is 585 millimeter. This is the total distance between the centers of the two mounting parts. The length from thread to thread (wihout mounting parts) is 545 mm. This replacement gas spring (6858848903302) has a force of 330 Newton (N). This is not an original gas spring produced by Airax Rayflex, but it can replace a Airax Rayflex gas spring. This replacement gas spring is a Stabilus Industry Line gas spring. The gas spring can be used without problems as a replacement, because the dimensions and force nearly equal.
