Replacement for Airax Rayflex 6858848901502 150N

$49.51




Replacement gas spring for the Airax Rayflex 6858848901502 150 Newton. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: HAHN, a Stabilus company.

Please note:
The diameter of the tube of this replacement gas spring is 19mm instead of 20mm.

View this gas spring in our configurator.
This gas spring is also known as 588489-CRR 150N, 50006858848901502, 6858848901502.00.
Airax Rayflex 6858848901502
WG20
elbow ball removal

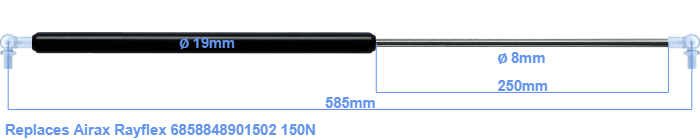

The bore of the house of this replacement gas spring is 19 mm. The rod has a diameter of 8 mm. The chrome part is called the rod. It has a length of 250 mm. The total length of this replacement is exactly 585 mm. This is the total distance between the centers of the two mounting parts. The length from thread to thread (wihout mounting parts) is 545 mm. This replacement gas spring (6858848901502) has a force of 150 Newton (N). Attention: this is not an official Airax Rayflex gas spring, but a replacement gas spring. This a gas spring with the brand HAHN. The gas spring can be used without problems as a replacement, because the dimensions and force close to equal.
