Replacement for Airax Rayflex 6858830804502 450N

$36.51




Replacement gas spring for the Airax Rayflex 6858830804502 450 Newton. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: Stabilus Industry Line.

Please note:
The diameter of the tube of this replacement gas spring is 19mm instead of 20mm.
This gas spring is also known as 588308-CRR 450N, 50006858830804502, 6858830804502.00.
Airax Rayflex 6858830804502
WG20
elbow ball removal

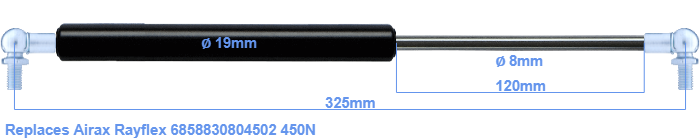

The bore of the house of this replacement gas spring is 19 mm. The cross section of the rod is 8 mm. The chrome part is called the rod. It has a length of 120 mm. The total length of this replacement is exactly 325 mm. Note: this is the total length between the rotation points of the two mounting parts. The distance from thread to thread (without mounting parts) is 285 mm. The force of this replacement gas spring is 450 Newton. This gas spring can replace a Airax Rayflex gas spring, but is not an orignal Airax Rayflex one. HAHN Gasfedern, a Stabilus subsidiary, is responsible for the production of this replacement gas spring. The gas spring has the brand Stabilus Industry Line. Nevertheless, the dimensions and force are almost entirely equal.
