Replacement for Airax Rayflex 6858828404502 450N

$53.02




Replacement gas spring for the Airax Rayflex 6858828404502 450 Newton. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: Stabilus Industry Line.

Please note:
The diameter of the tube of this replacement gas spring is 19mm instead of 20mm.
This gas spring is also known as 588284-CRR 450N, 50006858828404502, 6858828404502.00.
Airax Rayflex 6858828404502
WG20
elbow ball removal

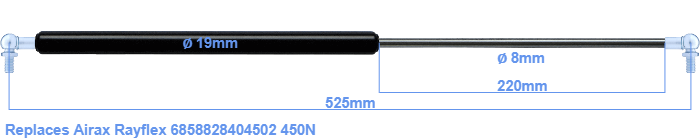

The diameter of the cylinder of this gas spring is 19 millimeters. The diameter of the rod is 8 millimeter. The chrome part is called the rod. It has a length of 220 mm. The total length of this replacement is exactly 525 mm. Attention: this is the length between the centers of the mounting parts. The distance from thread to thread (without mounting parts) is 485 mm. The force of this replacement gas spring is 450 Newton. This gas spring can replace a Airax Rayflex gas spring, but is not an orignal Airax Rayflex one. This is a Stabilus Industry Line gas spring. Nevertheless, this gas spring can be used as replacement gas spring, because the dimensions and forces are close to equal.
