Replacement for Airax Rayflex 6858827501002 100N

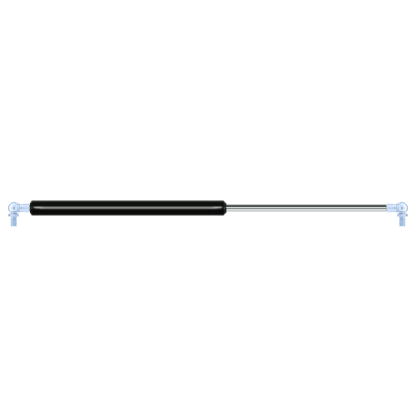

Replacement gas spring for the Airax Rayflex 6858827501002 100 Newton. This fits a (possibly already present) ball with a diameter of 10mm. A corresponding ball is included. Brand: Stabilus Industry Line.

Please note:
The diameter of the tube of this replacement gas spring is 19mm instead of 20mm.
This gas spring is also known as 588275-CRR 100N, 50006858827501002, 6858827501002.00.
Airax Rayflex 6858827501002
elbow ball removal

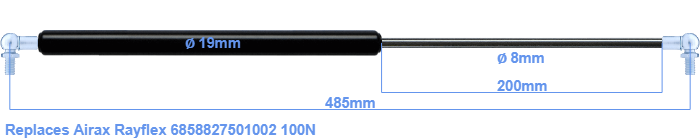

The diameter of the cylinder of this gas spring is 19 mm. The diameter of the rod is 8 millimeter. The stroke of the gas spring is 200 millimeter. The total length of this replacement is exactly 485 mm. Attention: this is the length between the centers of the mounting parts. The length from thread to thread (exlcuding the mounting parts) is 445 millimeter. This replacement gas spring has a force of 100 Newton. This is not an original gas spring from Airax Rayflex, but a so called replacement gas spring. This is a Stabilus Industry Line gas spring. The force (100 N) and dimensions are nearly identical to the original.
